Renusol  |  SKU: REN-860007

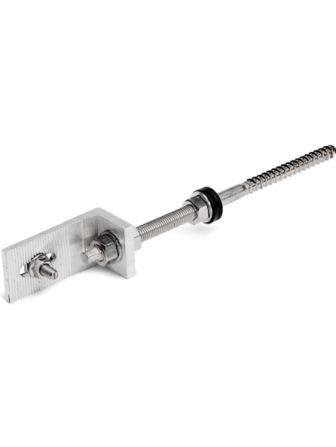

VarioSole Hanger bolt M12 x 250 Wood Substructure

£6.46
Tax included Shipping calculated at checkout.

Technical Data: Material: stainless steel A2 Diameter of sealing collar: 25 mm Sealing integrated: Yes Thread Diameter: M12; 11.0mm Thread: Partial thread Thread applicable for: Wood; Metric Thread length: 100.0 mm Head of screw = Hexagon head Minimum screw penetration = 60 mm Screw tip = Wood top Space for adjustment vertical = 91,00 mm Assembly without pre-drilling = 8.4 mm Compatible with product groups = VarioSole SE; TriSole Material = Stainless steel; Aluminum Other Contents:

  • 1 x 900002 Hanger bolt M12 x 250
  • 1 x 900007 Hammerhead bolt M8x25
  • 1 x 900001 Hexag. nut DIN6923 - M8 A2-70 with FL &SZ
  • 1 x 400012 Standard Bracket M12

Keywords: REN860007, Renusol, PV Mounting, Roof Anchor- Hanger Bolt

Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system.

If you have any technical queries about this product or wish to report any issues with the information on this page then please use the Contact Form to contact us.
Supplier Part No:
860007
Weight:
0.31 kg
Length:
0.25 m

Possible Alternatives
REN-860017 VarioSole Hanger bolt M12 x 300 Wood Substructure
