Renusol  |  SKU: REN-520075-K

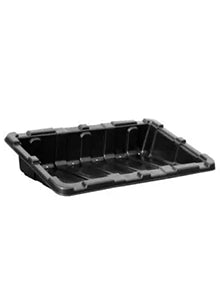

ConSole+ (incl. Mounting material and U-Profile)

£76.70
Tax included Shipping calculated at checkout.

The ConSole+ provides an angle of 15 degrees.

The ConSole+ assembly system is the ideal solution for installing PV modules on flat roofs with a pitch of up to 5 degrees without roof penetration. Most commercially available framed standard PV modules fit the ConSole+.

The ConSole+ is weighed down with ballast e.g. gravel, paving slabs, etc... in order to resist the windloads. The necessary weight of the ballast depends on the height of the building, its location and the condition of the ground and the wind and snow loads. Reference values for the necessary ballasts are contained in "Preparing the Assembly - Point 2" in the table of Page 5 of the installation manual.

Details: Colour: black Suitable for flat-roof- and ground mounting installations For framed PV-modules Technical Data: Material: HDPE, Aluminium and stainless steel Weight: 7,900 kg Max# module length: 1550-2400 mm Holes gap - width: 895-1014 mm Holes gap - length: 690-1180 mm Other Contents: 1 x 500075 ConSole+ 2 x 400005 ConSole U-Profile 1035 mm 4 x 900027 Hexag# screw DIN933-M6x20 A2-70 4 x 900028 Washer DIN9021-6,4-A2 4 x 900029 Self-locking hexag# nut DIN985-M6-A2 4 x 900106 ConSole Clip 4 x 900115 Hexag# screw DIN7504-ST5,5x25-A2-SW8

Bild vergrern >>

Keywords: REN520075K, PV Mounting, Flat Roof Tray

Renusol mounting equipment must not be used with mounting equipment from other suppliers. Doing so would inevitably void the warranty of the mounting system.
On Special Offer!
REN-520075-GROUND ConSole+ Ground Mount

If you have any technical queries about this product or wish to report any issues with the information on this page then please use the Contact Form to contact us.
Supplier Part No:
520075-K
Weight:
8 kg
Length:
1.71 m

Not required parts
REN-920106 ConSole Clip Set (BTO) Spare clips are included with the Console+ product so are not normally required.
Optional other parts
One of the followingElongation Rails
REN-460001 ConSole+ (incl. Mounting material and U-Profile) For use with module widths > 1014mm and < 1084mm
REN-460196 ConSole+ (incl. Mounting material and U-Profile)
One of the followingRear Grip Clamp
REN-420023 ConSole+ (incl. Mounting material and U-Profile) For use with module with Vertical size > 1750mm and < 2150mm
One of the followingStreamliner
REN-520076 ConSole+ (incl. Mounting material and U-Profile) To reduce the windloading on the back row of modules
Possible Alternatives
REN-420600 TriSole + L-Profile cross striving profile (SET)
