Solis  |  SKU: SOL-S6-EH3P20K-H

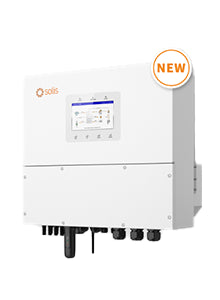

Solis S6 20 kW Three Phase Hybrid High Voltage Inverter

£1,601.10
Shipping calculated at checkout.


Delivery and Shipping

Next Business Day Delivery On Order placed Before 12:00 PM

Except Ireland, highlands and Islands.

Features:

  • Integrated 4 MPPTs for multiple array orientations
  • Up to 50A max charge/discharge current
  • String current up to 20A, perfectly match large current modules
  • 10 second 200% surge power backup overload capability
  • Supports Max 6 pcs in parallel
  • Supports Unbalanced and Half-Wave Loads on both the Grid and Backup Port
  • Supports peak shaving control in both "self-use" and "generator" mode
  • 6 customisable charge/discharge time settings
  • Automatic UPS switching
  • Intelligent AC coupling scheme, easily upgrade existing grid-connected systems

Important

Please note the S6-EH3P(12-20)K inverters are currently not compliant with G99 on the ENA register in the UK. There should be a change in the compliance status in the near future.

If you have any technical queries about this product or wish to report any issues with the information on this page then please use the Form to contact us.
Supplier Part No:
S6-EH3P20K-H-EU
Weight:
31.7 kg
Rated Power:
20,000 W
Min PPT Voltage:
200 V
Max PPT Voltage:
850 V
DC Startup Voltage:
160 V
DC Shutdown Voltage:
1,000 V
Max Input Voltage:
1,000 V
Max DC Power:
30,000 W
Max AC Power (5 Minutes):
20,000 W
Surge AC Power (1 Second):
22,000 W
Max DC Current:
96 A
Max DC Inputs:
6
Has DC Fuses:
0
Connector:
MC4 A
Included Connectors:
4
Euro Efficiency:
97.7 %
Transformer:
N/A
MPPT Quantity :
3
Has Integrated DC Switch:
No
Warranty:
5 years
