Solis | SKU:
SOL-1.0-MINI-S6-EU-DC
Sold out

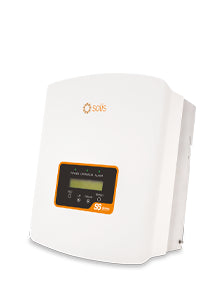

S6 Mini 1kW 1MPPT 1PH Inverter - with DC isolator (No Export Limitation)
£260.05
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
S6 Mini 1kW 1MPPT 1PH Inverter - with DC isolator (No Export Limitation) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Note: SOL-1.0-MINI-S6-EU-DC Without Export Limitation Function.
Solis Series 6 is the latest generation of grid-tied residential inverters from Solis. This range of inverters are leaders in affordable small residential rooftop installations.
Product Features
- Super high frequency switching technology with maximum efficiency of 96.6%
- Max PV Power of 1.5kW
- DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
- Wide voltage range - Ultra low start-up voltage of 60V and max PV input voltage of 600V
- Intergrated Export Power Manager (EPM)
- Integrated AFCI (DC arc-fault circuit protection)
- Integrated DC switch for safe PV maintenance
- 5-year standard warranty, extendable to 10 or 20-years!
SA: NRS-097 certified.
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Eco Trade Supplies will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Note: This inverter can be reduced in power with the agreement of the energy supplier in order to comply with possible regulations of a balcony power plant in your country. For this purpose, the document "Manufacturer Power Limit Declaration" issued by Solis (filed under Documentation) must be completed and sent to that energy supplier. In addition, please note that the inverter is connected with at least 2.5 mm in the distribution. Please refer to the corresponding manual when setting up the inverter.
If you have any technical queries about this product or wish to report any issues with the information on this page then please use the Contact Form to contact us.
- Supplier Part No:
- S6-GR1P1K-M
- Weight:
- 7.4 kg
- Rated Power:
- 1,000 W
- Min PPT Voltage:
- 60 V
- Max PPT Voltage:
- 500 V
- DC Startup Voltage:
- 60 V
- DC Shutdown Voltage:
- 50 V
- Max Input Voltage:
- 600 V
- Max DC Power:
- 1,500 W
- Max AC Power (5 Minutes):
- 1,100 W
- Surge AC Power (1 Second):
- 1,100 W
- Max DC Current:
- 14 A
- Max DC Inputs:
- 1
- Has DC Fuses:
- 0
- Connector:
- MC4
- Included Connectors:
- 1
- Euro Efficiency:
- 95.3 %
- Transformer:
- None
- MPPT Quantity :
- 1
- Has Integrated DC Switch:
- Yes
- Warranty:
- 5 years
Use our quick configurator tool to identify possible panel and inverter configurations: Quick Config
- Optional other parts
- to consider
- SOL-EPM1-5G S6 Mini 1kW 1MPPT 1PH Inverter - with DC isolator (No Export Limitation)
- One of the followingCurrent Sensor Clamp
- SOL-CT-100A-10M S6 Mini 1kW 1MPPT 1PH Inverter - with DC isolator (No Export Limitation)
- One of the followingWarranty Extension
- SOL-WAR-10Y-MINI S6 Mini 1kW 1MPPT 1PH Inverter - with DC isolator (No Export Limitation)
- SOL-WAR-20Y-MINI S6 Mini 1kW 1MPPT 1PH Inverter - with DC isolator (No Export Limitation)
- One of the followingWeb Interface
- SOL-S2-WL-ST S6 Mini 1kW 1MPPT 1PH Inverter - with DC isolator (No Export Limitation) Solis Data Logging Stick - WiFi &LAN
- SOL-DLS-W3 S6 Mini 1kW 1MPPT 1PH Inverter - with DC isolator (No Export Limitation) Data Logging Stick - WiFi Gen 3
- Possible Alternatives
- SOL-0.7-MINI-S6-DC 0.7kW Mini S6 Single Tracker with DC isolator
- SOL-2.0-MINI-S6-DC S6 Mini 2kW 1MPPT 1PH Inverter - with DC isolator
- SOL-3.0-MINI-S6-DC S6 Mini 3kW 1MPPT 1PH Inverter - with DC isolator
