Solis  |  SKU: SOL-3.0-S6-DT-EU-DC

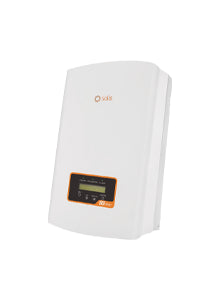

S6 3kW 2MPPT 1PH Inverter - with DC isolator

£447.48
Tax included Shipping calculated at checkout.

Solis Series 6 is the latest generation of grid-tied residential inverters from Solis. This range of inverters are leaders in affordable small residential rooftop installations.

Product Features

  • Super high frequency switching technology with maximum efficiency of 97.1%
  • Max PV Power of 4.5kW
  • DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
  • Wide voltage range - Ultra low start-up voltage of 90V and max PV input voltage of 600V
  • Intergrated Export Power Manager (EPM)
  • Integrated AFCI (DC arc-fault circuit protection)
  • Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
  • 5-year standard warranty, extendable to 10 or 20-years!

SA: NRS-097 certified

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Eco Trade Supplies will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Note: SOL-3.0-S6-DT-EU-DC Without Export Limitation Function.


If you have any technical queries about this product or wish to report any issues with the information on this page then please use the Contact Form to contact us.
Supplier Part No:
S6-GR1P3K
Weight:
7.7 kg
Rated Power:
3,000 W
Min PPT Voltage:
90 V
Max PPT Voltage:
500 V
DC Startup Voltage:
90 V
DC Shutdown Voltage:
80 V
Max Input Voltage:
600 V
Max DC Power:
4,500 W
Max AC Power (5 Minutes):
3,300 W
Surge AC Power (1 Second):
3,300 W
Max DC Current:
14 A
Max DC Inputs:
1
Has DC Fuses:
0
Connector:
MC4
Included Connectors:
2
Euro Efficiency:
96.7 %
Transformer:
None
MPPT Quantity :
1
Has Integrated DC Switch:
Yes
Warranty:
5 years
Use our quick configurator tool to identify possible panel and inverter configurations: Quick Config

Other Parts
One of the following Current Sensor Clamp
SOL-CT-100A-10M Current Transformer for Solis 4G, 5G and 6S range 100A 10m
Optional other parts
to consider
SOL-RF-LINK S6 3kW 2MPPT 1PH Inverter - with DC isolator Data Logging Device RF Kit and RF Stick
SOL-EPM1-5G S6 3kW 2MPPT 1PH Inverter - with DC isolator
One of the followingWarranty Extension
SOL-WAR-20Y-3-20K S6 3kW 2MPPT 1PH Inverter - with DC isolator
SOL-WAR-10Y-3-20K S6 3kW 2MPPT 1PH Inverter - with DC isolator
One of the followingWeb Interface
SOL-S2-WL-ST S6 3kW 2MPPT 1PH Inverter - with DC isolator Solis Data Logging Stick - WiFi &LAN
SOL-DLS-W3 S6 3kW 2MPPT 1PH Inverter - with DC isolator Data Logging Stick - WiFi Gen 3
Possible Alternatives
SOL-2.5-S6-DT-DC S6 2.5kW 2MPPT 1PH Inverter - with DC
SOL-3.0-S6-DT-DC S6 3kW 2MPPT 1PH Inverter - with DC
SOL-3.6-S6-DT-DC Solis 3.6kW S6 Dual MPPT - Single Phase with DC
SOL-2.5-MINI-S6-DC S6 Mini 2.5kW 1MPPT 1PH Inverter - with DC isolator
