Solis  |  SKU: SOL-S6-EH3P-10.0K-H-EU

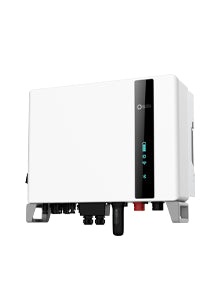

S6 10kW 3PH Hybrid Inverter (incl. 3PH meter)

£1,648.54 £1,753.88
Tax included Shipping calculated at checkout.

**** Not approved for the Belgian market! ***

Solis S6 10kW A 3PH A Hybrid Inverter

  • 4 MPPTs, suitable for residential rooftop installations with multiple array orientations
  • Supports Unbalanced and Half-Wave Loads on the Grid Port and on the Backup Port
  • Compatible with multiple brands of battery models giving customers multiple battery options
  • Supports up to 10 units in parallel on Grid and Backup. Suitable for small to medium level commercial energy storage systems
  • Supports pure off grid applications with generator communication support A
  • Multiple working modes to meet different use case scenarios A
  • Controllable and Upgadeable via the SolisCloud App to avoide site visits
  • Up to 16A of MPPT current input to support 182mm/210mm solar panels
  • Supports 1.6 DC:AC ratio to connect more PV capacity to the energy storage system
  • Up to 50A/10kW max charge/discharge rating with industry highest level 10kW of backup loads support capability A
  • UPS level switching time (<10ms) supporting critical loads all the time
  • High PV charge efficiency to prevent excess PV loss
  • Safety protection with integrated AFCI function, which actively detects arc faults in the PV Array
  • Natural convection design without external fans

Please note:

  • The inverter is supplied including the S2-WL-ST data logger stick (WiFi & LAN) and a 3PH meter from Eastron

If you have any technical queries about this product or wish to report any issues with the information on this page then please use the Form to contact us.
Supplier Part No:
S6-EH3P10K-H-EU
Weight:
31.8 kg
Rated Power:
10,000 W
Min PPT Voltage:
200 V
Max PPT Voltage:
850 V
DC Startup Voltage:
160 V
DC Shutdown Voltage:
160 V
Max Input Voltage:
1,000 V
Max DC Power:
16,000 W
Max AC Power (5 Minutes):
11,000 W
Surge AC Power (1 Second):
12,000 W
Max DC Current:
64 A
Max DC Inputs:
4
Has DC Fuses:
0
Connector:
MC4 A
Included Connectors:
4
Euro Efficiency:
97.7 %
Transformer:
None
MPPT Quantity :
4
Has Integrated DC Switch:
Yes
Warranty:
5 years
