Pylontech  |  SKU: PYL-PELIO-L-4-20.48

Pylontech Pelio-L-5.12 LV x4 Battery Module 20.48kWh

£5,406.08
Tax included Shipping calculated at checkout.


Delivery and Shipping

Next Business Day Delivery On Order placed Before 12:00 PM

Except Ireland, highlands and Islands.

Returns and Refunds

  • We have a 30 return policy, which means you have up to 30 days after placing your order to request a return.
  • Re-stocking fees may apply, please see our Returns and Refund policy for more detail -
This part is made up of the following items:
4 x nowrap="">Pylontech Pelio-L-5.12 LV Battery Module A

Pylontech Pelio-L-5.12 LV Battery Module

  • Expandable modular design, up to A 20*5.12kWh in parallel (3-modules stack for A wall mounting A and 4-modules A stack for A ground mounting)
  • High energy density cells makes for lightweight but high capacity batteries
  • Smaller footprint and indoor/outdoor compatible to save your valuable space
  • Secured by self-developed cells. modules and BMS
  • Dual active protection mechanism enhances safety significantly
  • Designed for 15+ years or >8000 charging cycles
  • Compatible with A Solis low voltage hybrid/AC inverters (see attached document)
  • Remote monitoring of the battery system via a plug-in wifi module (supplied with the installation kit, not with the battery itself)
Required: A target="_blank">PYL-PELIO-GROUND-MOUNT A for 1 to 4 batteries A (Ground-Mounted Installation Package).
WARNING: The Wall-Mounted Installation Package is not compatible for stacks more than 3.

If you have any technical queries about this product or wish to report any issues with the information on this page then please use the Form to contact us.
Weight:
180 kg
Rated Power:
20,480 W
Battery Type:
Lithium Ion
Nominal Energy:
20480 Wh
Depth of discharge:
95.00 %
Voltage:
51 V
Continuous Discharge Rate (Normal Use):
5120 W
Maximum Discharge Rate (5 Minutes):
5120 W
Surge Discharge Rate (15 Seconds):
6144 W
Maximum Charge Rate (5 Minutes):
5120 W

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Ecotrade supplies

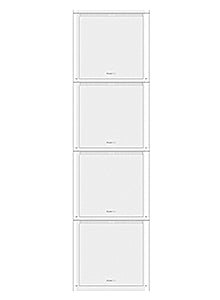

Image of Pylontech Pelio-L-5.12 LV x4 Battery Module 20.48kWh, perfect for solar panel installations and battery storage.
