Solis  |  SKU: SOL-S5-GR3P-8K-DC

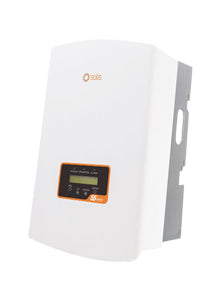

Solis 8kW S5 3 Phase Dual MPPT - DC

£769.89 £784.51
Shipping calculated at checkout.


Delivery and Shipping

Next Business Day Delivery On Order placed Before 12:00 PM

Except Ireland, highlands and Islands.

Series 5 GR3P Three Phase Grid-Tied Inverter

Product Features:

  • Max. efficiency of 98.5%
  • Type-II over-voltage surge protection for both DC and AC
  • Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
  • 16A PV string input x 2
  • Maximum AC output power of 8.8kW
  • Max PV DC Power of 12kW
  • Integrated AFCI (DC arc-fault circuit protection)
  • IP66 Rated
  • DC reverse-polarity protection
  • 5-year standard warranty (10-year standard warranty for the Netherlands, Belgium, France, Germany, Poland, Italy)

Register on SolisCloud, to support remote upgrade and control.

NRS-097-2-1 Certified

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SPG Renewables will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Important

Please note that this inverter does not include a data logger, CT, meter or export power manager. The meter "SOL-METER-3PH-CT3" is needed for export power control of one inverter, for more than one inverter use the EPM3-5G-PLUS.The meter requires a data logging stick but EPM3-5G-PLUS has a built in data logger.These items are sold separately.

If you have any technical queries about this product or wish to report any issues with the information on this page then please use the Contact Form to contact us.
Supplier Part No:
SOL-S5-GR3P-8K-DC
Weight:
20.25 kg
Rated Power:
8,000 W
Min PPT Voltage:
180 V
Max PPT Voltage:
1,000 V
DC Startup Voltage:
180 V
DC Shutdown Voltage:
160 V
Max Input Voltage:
1,100 V
Max DC Power:
12,000 W
Max AC Power (5 Minutes):
8,800 W
Surge AC Power (1 Second):
8,800 W
Max DC Current:
32 A
Max DC Inputs:
2
Has DC Fuses:
0
Connector:
MC4
Included Connectors:
4
Euro Efficiency:
97.9 %
Transformer:
None
MPPT Quantity :
2
Has Integrated DC Switch:
Yes
Warranty:
5 years
Use our quick configurator tool to identify possible panel and inverter configurations: Quick Config

Optional other parts
to consider
SOL-DLS-W3 Solis 8kW S5 3 Phase Dual MPPT - DC
SOL-EPM3-5G-PLUS Solis 8kW S5 3 Phase Dual MPPT - DC
SOL-METER-3PH-CT3 Solis 8kW S5 3 Phase Dual MPPT - DC
One of the followingWarranty Extension
SOL-WAR-20Y-3-20K Solis 8kW S5 3 Phase Dual MPPT - DC
SOL-WAR-10Y-3-20K Solis 8kW S5 3 Phase Dual MPPT - DC
One of the followingWeb Interface
SOL-S2-WL-ST Solis 8kW S5 3 Phase Dual MPPT - DC Solis Data Logging Stick - WiFi &LAN
Possible Alternatives
SOL-S5-GR3P-10K-DC Solis 10kW S5 3 Phase Dual MPPT - DC
SOL-S5-GR3P-6K-DC Solis 6kW S5 3 Phase Dual MPPT - DC
SOL-S5-GR3P-20K-DC Solis 20kW S5 3 Phase Dual MPPT - DC
