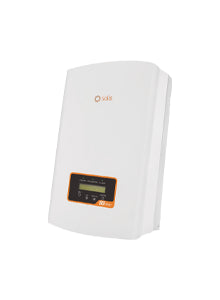

S6 2.5kW 2MPPT 1PH Inverter - with DC
S6 2.5kW 2MPPT 1PH Inverter - with DC is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Solis Series 6 is the latest generation of grid-tied residential inverters from Solis. This range of inverters are leaders in affordable small residential rooftop installations.
Product Features
- Maximum string input current 14A
- Easy installation: Integrate with export power control function and DRM function.
- Max. Efficiency over 97.7% European efficiency over 97.1%
- Wide input voltage range for better generation and low startup
- Dual MPPT design with precise MPPT algorithm
- Export Limitation built in - Requires CT clamp (sold separately)
- Integrated AFCI (DC arc-fault circuit protection)
- Rated IP66
- 5-year standard warranty (10-year standard warranty for the Netherlands, Belgium, France, Germany, Poland, Italy)
Need monitoring? The Solis WIFI adaptor is compatible with all Solis inverters, click here for details.
SA: NRS-097 certified
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Eco Trade Supplies will not be held liable for any product malfunctions as a result of incorrectly installed systems.
- Supplier Part No:
- S6-GR1P2.5K-DC
- Weight:
- 13.49 kg
- Rated Power:
- 2,500 W
- Min PPT Voltage:
- 60 V
- Max PPT Voltage:
- 550 V
- DC Startup Voltage:
- 60 V
- DC Shutdown Voltage:
- 50 V
- Max Input Voltage:
- 550 V
- Max DC Power:
- 3,750 W
- Max AC Power (5 Minutes):
- 2,800 W
- Surge AC Power (1 Second):
- 2,800 W
- Max DC Current:
- 28 A
- Max DC Inputs:
- 2
- Has DC Fuses:
- 0
- Connector:
- MC4
- Included Connectors:
- 2
- Euro Efficiency:
- 96.5 %
- Transformer:
- None
- MPPT Quantity :
- 2
- Has Integrated DC Switch:
- Yes
- Warranty:
- 5 years
- Not required parts
- SOL-EPM3-5G-PLUS Solis Export Power Manager PLUS 5 Gen - 3ph for Up to 10 inverters
- SOL-METER-3PH-CT3 Solis 3phase Meter DTSD1352 with 3x150A:5A CTs
- Optional other parts
- to consider
- SOL-EPM1-5G S6 2.5kW 2MPPT 1PH Inverter - with DC
- SOL-DLS-W3 S6 2.5kW 2MPPT 1PH Inverter - with DC Data Logging Stick - WiFi Gen 3
- One of the followingCurrent Sensor Clamp
- SOL-CT-100A-10M S6 2.5kW 2MPPT 1PH Inverter - with DC CT clamp required for Export Limitation of one inverter
- One of the followingWarranty Extension
- SOL-WAR-20Y-2.5-8.0 S6 2.5kW 2MPPT 1PH Inverter - with DC
- SOL-WAR-10Y-2.5-8.0 S6 2.5kW 2MPPT 1PH Inverter - with DC
- One of the followingWeb Interface
- SOL-S2-WL-ST S6 2.5kW 2MPPT 1PH Inverter - with DC Solis Data Logging Stick - WiFi &LAN
- Possible Alternatives
- SOL-2.5-MINI-S6-DC S6 Mini 2.5kW 1MPPT 1PH Inverter - with DC isolator
- SOL-3.6-S6-DT-DC Solis 3.6kW S6 Dual MPPT - Single Phase with DC
