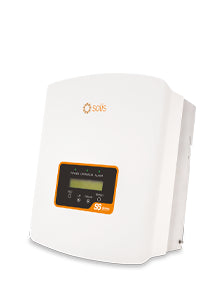

S6 Mini 1.5kW 1MPPT 1PH Inverter - with DC isolator
The All New Solis Mini 6S Series Grid-tie Inverter. Compact and lightweight design, for easy installation. Fanless, minimal noise, producing less than 20 dBA. Compatible with high-efficiency modules and bi-facial modules.
Product Features
- Super high frequency switching technology with maximum efficiency of 96.6%
- Max PV Power of 2.3kW
- DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
- Wide voltage range - Ultra low start-up voltage of 60V and max PV input voltage of 600V
- Intergrated Export Power Manager (EPM)
- Integrated AFCI (DC arc-fault circuit protection)
- Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
- 5-year standard warranty (10-year standard warranty for the Netherlands, Belgium, France, Germany, Poland, Italy)
- Supplier Part No:
- S6-GR1P1.5K-M-DC
- Weight:
- 7.4 kg
- Rated Power:
- 1,500 W
- Min PPT Voltage:
- 60 V
- Max PPT Voltage:
- 500 V
- DC Startup Voltage:
- 60 V
- DC Shutdown Voltage:
- 50 V
- Max Input Voltage:
- 600 V
- Max DC Power:
- 2,300 W
- Max AC Power (5 Minutes):
- 1,650 W
- Surge AC Power (1 Second):
- 1,650 W
- Max DC Current:
- 14 A
- Max DC Inputs:
- 1
- Has DC Fuses:
- 0
- Connector:
- MC4
- Included Connectors:
- 1
- Euro Efficiency:
- 95.4 %
- Transformer:
- None
- MPPT Quantity :
- 1
- Has Integrated DC Switch:
- Yes
- Warranty:
- 5 years
