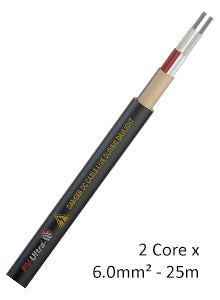

6mm2 Two Core DC Cable 25m - Red and Black
PV-Ultra - Double Insulated Multicore DC Cable
PV-Ultra is a durable cable specifically crafted for DC interconnections within solar photovoltaic systems. With outstanding mechanical properties, it can be installed both internally and externally. Constructed from high-quality materials, it boasts an expected lifespan of approximately 25 years. The cables are designed to operate at a maximum conductor temperature of 90C, with a permissible maximum conductor temperature of 120C for up to 20,000 hours, under a maximum ambient temperature of 90C.
Features and Benefits
- Easier to handle and identify
- Saves installation costs and installation time
- Easier to route along/through buildings or walls
- Gives a cleaner, neater installation
- Safer as it removes the need for junction boxes
- Safer as it looks like a power cable to reduces the risk of accidental damage
- Pre-marked LIVE D' warning message to improve safety
Current carrying capacities based on ambient temperature of 60C , for temperatures above 60C temperature derating factors should be applied as follows 70C=0.91, 80C=0.82, 90C=0.71. Refer to BS7671 for further guidance.
- Supplier Part No:
- PV-ULTRA2C6.0.25M
- Weight:
- 10.12 kg
- Length:
- 25 m
- Area:
- 6 mm 2
- Colour:
- Red and Black
- Cores:
- 2 - N
- Max Current:
- 67
- Max Voltage:
- 1800
