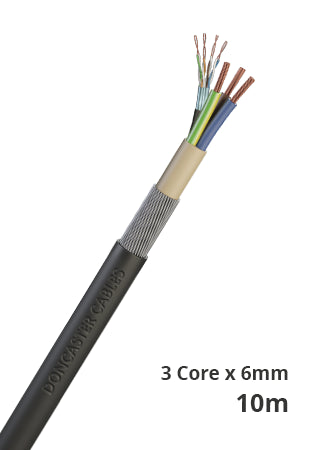

6mm2 Three Core Cat5e EV Ultra Cable with SWA Sleeve - 10m

EV Ultra - Specially Developed to meet the requirements of EV charge points with data connectivity

10m cable length

• Conductor: Plain Annealed Copper Class 2 Stranded to BS EN 60228
• Insulation: Thermosetting XLPE Type GP8 to BS 7655-1.3
• Bedding: CarbonTek Steel Wire Armour: Galvanised steel wire armour
• Sheathing: CarbonTek Energy
• Monitor Cable: Cat5e FTPFoil Screened 4 twisted pair

Features and Benefits

• Power and data combined in one cable
• Less storage space required
• Easier to handle
• Easier to route through walls and buildings
• Saves installation time
• Gives a cleaner, neater looking installation

This cable is designed for use in the installation of electric vehicle charge points. The cable incorporates power conductors and an enhanced Cat 5 screened data cable, encapsulated in a double sheathed design for extra protection. Whilst designed for use in electric vehicle charge points, the cable is also suitable for other installations where power and data is required.

These cables are designed to be installed in air, clipped to surface, on cable tray/ladder work and embedded in concrete. The cables can be laid direct in the ground providing that suitable mechanical protection is in place.

• Minimum operating temperature: -15C
• Maximum operating temperature: 90C
• Minimum bending radius: 8 x

Please Note: When placing your order, please be aware that the quantity you purchase corresponds to the length of cables you'll receive. For instance, ordering a quantity of 10 means you'll receive 10 meters of cable.
