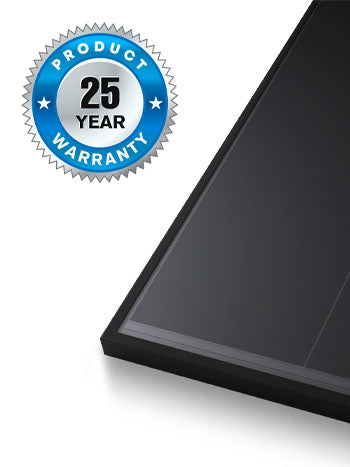

Aiko Neostar 2S 510W N-Type ABC, 60 Cell, All Black, Gen 2

AIKO’s All-Black 60-cell gen 2 panels are a result of cutting-edge technology and deliver a fantastic 23.0% efficiency. These sleek panels feature a blacked-out effect and bezel-less edge to provide a stylish edge to the panel’s overall design. AIKO’s 60 cell panels are perfect for residential builds looking for the highest efficiency available.

• Up to 23.2% Efficiency 500W-515W
• Maximum System Voltage: DC1500V
• Panel Rating (510W) Efficiency: 23%
• Cable Length: 1.2m
• Connector: Staubli MC4 EVO2
• Product Warranty: 25 Years
• Performance Warranty: 30 Years
• Width: 1,134mm
• Height: 1,954mm
• Price per Watt: (14.0p/Wp)

Aiko Key Features

• Winner of 2023 intersolar innovation award, 2023 Red dot design award and 2024 ESG transparency
• No.1 efficiency in the market
• Cell-level partial shade optimisation (one and only in the industry)
• High temperature restriction for fire safety
• Micro-crack resistance
• Better temperature coefficient at -0.26 (best in CEA PV Tech lab test report)
• Elegant no-busbar look

Weight: 24 kg
Rated Power: 510 W
MCS Reference: MCS PV0330/327
Length: 1,954 mm
Width: 1,134 mm
Depth: 30 mm
VMPP: 38.1 V
IMPP: 13.39 A
Isc: 14.17 A
Voc: 45.22 V
Temp. Coefficient (Mpp): -0.26 %
Clamp position on panel: Long and short side
Connector Type: EVO2
Efficiency: 23.0 %
Pallet Size: Oversized

Compatible Optimisers:

S1000-LI-MC4 S1000 Power Optimizer Long Input (1.3m)

S1000-MC4 S1000 Power Optimizer (Short Input 0.1m)

S1200-LI-MC4 SolarEdge S1200 Commercial Power Optimizer Long Input (1.6m)

S1200-MC4 S1200 Power Optimizer (Short Input 0.1m)

S1400-MC4 S1400 Power Optimizer (Short Input 0.1m)

SUN2000-600W-P Huawei SUN2000 600W Smart PV Optimizer

TS4-A-O Tigo TS4 PV Module Advanced Add-On/Retrofit
