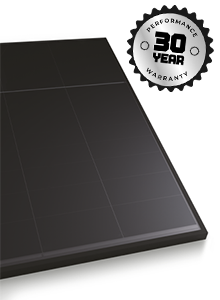

Aiko Neostar 2S 450W N-Type ABC, 54 Cell, Mono Glass All Black, Gen 2

AIKOs All-Black 54-cell gen 2 panels are a result of cutting-edge technology and deliver a fantastic 22.6% efficiency. These sleek panels feature a blacked-out effect and bezel-less edge to provide a stylish edge to the panels overall design. AIKOs 54 cell panels are perfect for residential builds looking for the highest efficiency available.

• Panel:  Monocrystallines
• Rating: 450W
• Efficiency: 22.6%
• Width: 1,134mm
• Height: 1,757mm
• Price per Watt: (12.1p/Wp

Aiko Key Features

• Winner of 2023 intersolar innovation award, 2023 Red dot design award and 2024 ESG transparency
• No.1 efficiency in the market
• Cell-level partial shade optimisation (one and only in the industry)
• High temperature restriction for fire safety
• Micro-crack resistance
• Better temperature coefficient at -0.26 (best in CEA PV Tech lab test report)
• Elegant no-busbar look
• Up to 23.1% Efficiency 440W-460W
• Maximum System Voltage: DC1500V
• Panel Rating (450W) Efficiency: 22.6%
• Cable Length: 1.2m
• Connector: Staubli MC4 EVO2
• Product Warranty: 25 Years
• Performance Warranty: 30 Years

Panel Attributes:

Supplier Part No:

AIK-A-MAH54-450-AB-G2

Weight:

21.6 kg

Rated Power:

450 W

MCS Reference:

MR 50640718 0001/674

Length:

1,757 mm

Width:

1,134 mm

Depth:

30 mm

VMPP:

33.7 V

IMPP:

13.36 A

Isc:

14.12 A

Voc:

40.69 V

Temp. Coefficient (Mpp):

-0.26 %

Clamp position on panel:

Long and short side

Connector Type:

EVO2

Efficiency:

22.6 %

Pallet Size:

Oversized



Compatible Optimisers:

S1000-LI-MC4 S1000 Power Optimizer Long Input (1.3m)

S1000-MC4 S1000 Power Optimizer (Short Input 0.1m)

S1200-LI-MC4 SolarEdge S1200 Commercial Power Optimizer Long Input (1.6m)

S1200-MC4 S1200 Power Optimizer (Short Input 0.1m)

S1400-MC4 S1400 Power Optimizer (Short Input 0.1m)

S500-B2-MC4 Solar Edge S500B Power Optimizer (33mm Depth)

S500-B-MC4 Solar Edge S500B Power Optimizer (45mm Depth)

S500-MC4 Solar Edge S500 Power Optimizer

SUN2000-450W-P2 Huawei SUN2000 450W Smart PV Optimizer

SUN2000-600W-P Huawei SUN2000 600W Smart PV Optimizer

TS4-A-O Tigo TS4 PV Module Advanced Add-On/Retrofit
