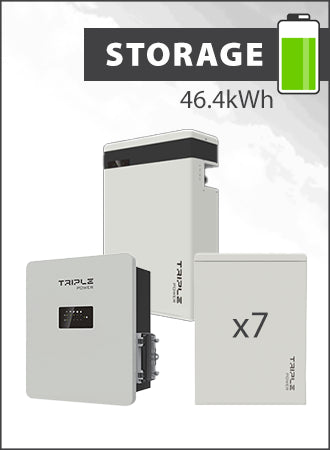

SolaX BMS Parallel Box with Triple Power T58 HV 46.4kWh
SolaX BMS Parallel Box with Triple Power T58 HV 46.4kWh is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
| 7 x HV11550-58-SLAVE-V2 | SolaX Triple Power HV 5.8kWh LFP Extension Battery SLAVE V2 | |
| 1 x HV-T-BAT-H-58-MASTER-V2 | SolaX Triple Power HV 5.8kWh LFP Main Battery MASTER V2 | |
| 1 x SOLAX-BMS-PB-G2 | SOLAX BMS Parallel Box G2 | |
Package of: Solax BMS Parallel Box and SolaX Triple Power 5.8 Master and Slave Batteries
The Solax BMS Parallel Box is an advanced battery management system that enables seamless parallel connection of multiple batteries, ensuring efficient energy utilisation and enhanced performance. With its cutting-edge technology and robust design, this parallel box is the ideal choice for residential and commercial applications.
Possible System Configurations
T58
- X1 Single Phase: 2, 4 or 6 Triple Power 5.8kWh batteries.
- X3 Three Phase: 4, 6, 8 Triple Power 5.8kWh batteries.
BMS Parallel Box II G2 Installation Video
Please note:
- Unlike G1 version of BMS-Parallel Box this G2 now works with T58 Master batteries, meaning it is easier to retro-fit to existing systems
- A minimum of 2 batteries (single phase) and 4 batteries (three-phase) must be used with this product.
- Weight:
- 586.3 kg
- Battery Type:
- Lithium Ion
- Nominal Energy:
- 46400 Wh
- Depth of discharge:
- 90.00 %
- Voltage:
- 920 V
- Continuous Discharge Rate (Normal Use):
- 22300 W
- Maximum Discharge Rate (5 Minutes):
- 3500 W
- Surge Discharge Rate (15 Seconds):
- 32000 W
- Maximum Charge Rate (5 Minutes):
- 3500 W
SolaX BMS Parallel Box with Triple Power T58 HV 46.4kWh
