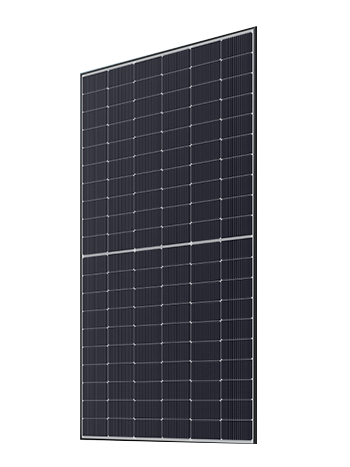

JA Solar 525W Mono PERC Half-Cell MBB LB Traceable Black Frame MC4
JA Solar 525W Mono PERC Half-Cell MBB LB Traceable Black Frame MC4 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features:
- Higher power generation - better LCOE.
- N-type with very low LID.
- Better weak illumination response.
- Better temperature coefficient.
- Comes with a 12-year product warrant and 30-year linear power output warranty.
- Rating: 525W
- Efficiency: 22.4%
- Width: 1,134mm
- Height: 2,063mm
- Price per Watt: (9.1p/Wp)
- Weight: 28.8 kg
- Rated Power: 525 W
MCS Reference: BABT8515-381-525W
Length: 2,063 mm
Width: 1,134 mm
Depth: 30 mm
VMPP: 36.59 V
IMPP: 14.35 A
Isc: 15.21 A
Voc: 43.73 V
Temp. Coefficient (Mpp): -0.3 %
Clamp position on panel: Long and short side
Connector Type: Round Post
Efficiency: 22.4 %
Pallet Size: Oversized
Compatible optimisers:
S1200-MC4 S1200 Power Optimizer (Short Input 0.1m)
S1400-MC4 S1400 Power Optimizer (Short Input 0.1m)
Due to size of the panels and size of the gap between the slats of the pallets (both length and width entries) a fork lift truck on site is required to offload these modules.
