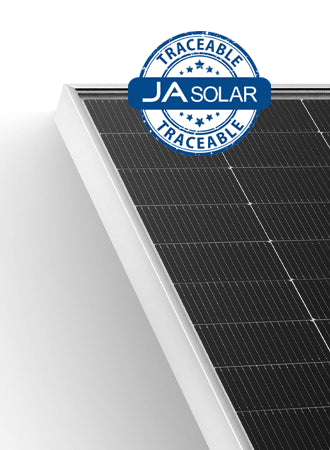

JA Solar 525W Mono PERC Half-Cell MBB LB Traceable Silver Frame MC4
JA Solar 525W Mono PERC Half-Cell MBB LB Traceable Silver Frame MC4 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Features:
- Higher power generation - better LCOE.
- N-type with very low LID.
- Better weak illumination response.
- Better temperature coefficient.
- Comes with a 12-year product warrant and 30-year linear power output warranty. A
Eco Trade Supplies Solar is an authorized reseller for JA Solar, please refer to the A A in the document section.
Due to size of the panels and A size of the gap between the slats of the pallets (both length and width entries) a fork lift truck on site is required to offload these modules. In Germany, this module may only be installed on building-independent solar systems in publicly inaccessible areas with a height of up to 3m.
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Eco Trade SuppliesSolar will not be held liable for any product malfunctions as a result of incorrectly installed systems.
- Supplier Part No:
- JAM60D-42-525-LB-SF
- Weight:
- 28.8 kg
- Rated Power:
- 525 W
- Length:
- 2,063 mm
- Width:
- 1,134 mm
- Depth:
- 30 mm
- VMPP:
- 36.59 V
- IMPP:
- 14.35 A
- Isc:
- 15.21 A
- Voc:
- 43.73 V
- Temp. Coefficient (Mpp):
- -0.3 %
- Clamp position on panel:
- Long and short side
- Connector Type:
- Round Post
- Efficiency:
- 22.4 %
- Pallet Size:
- Oversized
- Compatible Optimisers
- S1200 Power Optimizer
- A
- S1200 Power Optimizer (SolarEdge Promo)
- A
- S1400 Power Optimizer (Long Input 1.8m)
- A
- S1400 Power Optimizer
