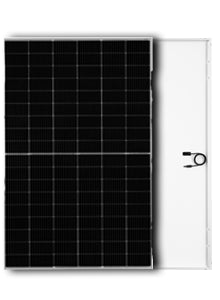

JA Solar 420W Mono PERC Half-Cell MBB LR Black Frame
Product Feature:
- Higher output power (420W).
- Lower levelized cost of energy (LCOE).
- Better shading tolerance.
- Enhanced tolerance for mechanical loading.
- 12-year product warranty and 25-year linear power output warranty.
Comes supplied with staubli MC4 connectors.
Eco Trade Supplies Solar is an authorized reseller for JA Solar, please refer to the letter in the document section.
Due to size of the panels and size of the gap between the slats of the pallets (both length and width entries) a fork lift truck on site is required to offload these modules. In Germany, this module may only be installed on building-independent solar systems in publicly inaccessible areas with a height of up to 3m.
- Supplier Part No:
- JAM54S30-425/LR
- Weight:
- 20 kg
- Rated Power:
- 420 W
- MCS Reference:
- BABT 8515-231
- Length:
- 1,762 mm
- Width:
- 1,134 mm
- Depth:
- 30 mm
- VMPP:
- 31.11 V
- IMPP:
- 13.5 A
- Isc:
- 14.25 A
- Voc:
- 37.73 V
- Temp. Coefficient (Mpp):
- -0.35 %
- Clamp position on panel:
- Long and short side
- Connector Type:
- MC4
- Efficiency:
- 21.0 %
- Pallet Size:
- Oversized
- Possible Alternatives
- JAM54D-40-420-GB-MC4 420W N-type Bifacial Double Glass Mono GB Black Frame with MC4 connectors
- JAM54D-40-420-MB-MC4 420W N-type Bifacial Double Glass Mono MB with MC4 connectors, Black Frame
- JAM54S-30-425-LR-BF JA Solar 425W Mono PERC Half-Cell MBB LR Black Frame
- JAM54S-31-420-LR-AB JA Solar 420W Mono MBB PERC LR Half-Cell All Black MC4
- CS6R-415MS-EVO2-BF Canadian Solar 415W High Power Mono PERC HiKU Black Frame with MC4-EVO2
- JAM54S-30-415-GR-BF JA Solar 415W Mono PERC Half-Cell MBB Black Frame GR
- JAM54S-30-420-GR-BF JA Solar 420W Mono PERC Half-Cell MBB Black Frame GR MC4
- Compatible Optimisers
- S1000-LI-MC4 S1000 Power Optimizer Long Input (1.3m)
- S1000-MC4 S1000 Power Optimizer
- S1200-LI-MC4 SolarEdge S1200 Commercial Power Optimizer
- S1200-MC4 S1200 Power Optimizer
- S1400-MC4 S1400 Power Optimizer
- S440-MC4 Solar Edge S440 Power Optimizer
- S500-MC4 Solar Edge S500 Power Optimizer
- TS4-A-O Tigo TS4 PV Module Advanced Add-On/Retrofit
- P750-MC4 SolarEdge P750 Optimiser MC4 High Current for Bi-Facial
- SUN2000-450W-P2 Huawei SUN2000 450W Smart PV Optimizer
- SUN2000-600W-P Huawei SUN2000 600W Smart PV Optimizer
