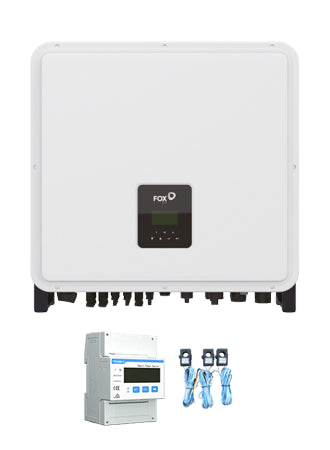

Fox ESS H3 Pro 30kW 3PH Hybrid Inverter with 3PH CT Meter
Fox ESS H3 Pro 30kW 3PH Hybrid Inverter with 3PH CT Meter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
| Part | ||
|---|---|---|
| 1 x FE-H3-PRO-30.0 | Fox ESS H3 Pro 30kW 3PH Hybrid Inverter | |
| 1 x FE-3PH-METER-CT | Fox CT Meter (compatible with AC, HY &AIO ranges) |
Includes FE-3PH-METER-CT
Harness the power of the sun day and night with FoxESS' groundbreaking line of hybrid inverters.
- Easy installation - Flexible configuration, Plug &Play, built-in fuse protection.
- High Voltage - Includes high-voltage batteries for maximum round-trip efficiency.
- IP65 Rated - Engineered to last with maximum flexibility. Suitable for outdoor installation.
- Remote Monitoring - Monitor remotely via app or web portal.
- Parallelable up to 10 inverters with FE-H3-PRO-EMS (Available mid-late May).
Easily expand your system by adding extra batteries. There are three battery series you can choose from, which enables a storage capacity of up to 86.40 kWh.
Fox Inverters are compatible with the following batteries:
- 1x FE-HV-BMS + (3-16)x FE-HV-2600
- 1x ECM-2900 (Master) + (2-6)x ECS-2900 (Slave) (Connector Type A)
- 1x ECM-2900 (Master) + (2-6)x ECS-2900 (Slave) (Connector Type B)
- 1x ECM-4100 (Master) + (2-6)x ECS-4100 (Slave)
- 1x ECM-4300 (Master) + (2-6)x ECS-4300 (Slave)
- 1x ECM-4800 (Master) + (2-6)x ECS-4800 (Slave)
Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard. Please check the warranty document for more information.
G99 and G100 Certified
- Weight:
- 57.5 kg
- Rated Power:
- 30,000 W
- Min PPT Voltage:
- 160 V
- Max PPT Voltage:
- 1,000 V
- DC Startup Voltage:
- 160 V
- DC Shutdown Voltage:
- 160 V
- Max Input Voltage:
- 1,000 V
- Max DC Power:
- 45,000 W
- Max AC Power (5 Minutes):
- 30,000 W
- Surge AC Power (1 Second):
- 33,000 W
- Max DC Current:
- 96 A
- Max DC Inputs:
- 6
- Has DC Fuses:
- 0
- Connector:
- MC4
- Included Connectors:
- 12
- Euro Efficiency:
- 97.4 %
- Transformer:
- None
- MPPT Quantity :
- 3
- Has Integrated DC Switch:
- Yes
- Warranty:
- 5 years
