Fox ESS  |  SKU: FE-HV-EC-A-7-2.9-20.3

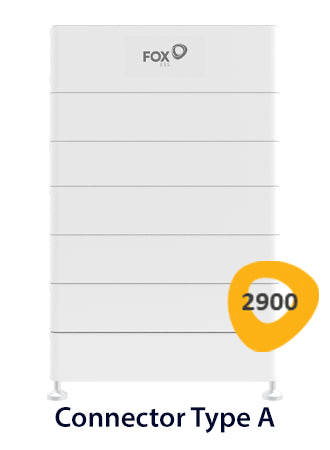

Fox ECS HV ECM2900 Connector Type A, 20.16kWh 1x Master 6x Slave (Full Stack)

£5,706.01 £6,408.66
Tax included Shipping calculated at checkout.
This part is made up of the following items:
6 x FE-HV-ECS-2900-4A2C Fox ECS 2.88kWh HV Battery (Slave)-V2.0 Connector A
1 x FE-HV-ECM-2900-4A2C Fox ECS 2.88kWh HV Battery (Master)-V2.0 Connector A

Fox ECS 2.9kWh CONNECTOR TYPE A- Full Stack of 7 (20.16kWh Useable Storage) incl. Master

ECM2900-4A2C

  • 2.88kWh Capacity
  • Scalable to 20.16kWh
  • 90% Depth of Discharge
  • Wide Temperature Tolerence
  • Easy Installation
  • CAN/RS485 Communication
  • High Voltage

The quick &easy install feature allows for more ECM2900 battery modules to be added post installation.

Weight: 229.1kg

Dimensions (Width, Hight, Depth): 570mm x 950mm x 380mm

Don't forget: You must register your install with Fox online to activate the 12 year product warranty, otherwise it's 5 years as standard. Please check the warranty document for more information.

This battery requires a MINIMUM of 2 modules to work (Master + Slave), This battery can have a MAXIMUM of 7 modules in a stack (1x Master + 6x Slaves)

If you have any technical queries about this product or wish to report any issues with the information on this page then please use the Contact Form to contact us.
Weight:
249.15 kg
Battery Type:
Lithium Ion
Nominal Energy:
20160 Wh
Depth of discharge:
90.00 %
Voltage:
403 V
Continuous Discharge Rate (Normal Use):
20160 W
Maximum Discharge Rate (5 Minutes):
20160 W
Surge Discharge Rate (15 Seconds):
26208 W
Maximum Charge Rate (5 Minutes):
20160 W
