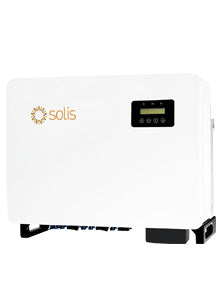

Solis 50kW S5 3 Phase 5x MPPT - DC
S5-GC50K - Series 5 Three Phase Grid-Tied Inverter
Product Features
- Max. efficiency of 98.7%
- Type-II over-voltage surge protection for both DC and AC
- Wide voltage range - Ultra low start-up voltage of 195V and max PV input voltage of 1100V
- Max PV DC Power of 75kW
- 32A input per MPPT, 16A input for each PV string
- Maximum output power of 55kW
- 5 MPPT design with precise MPPT algorithm, with 2 DC inputs per MPPT effectively reducing string mismatch
- Intelligent monitoring, Smart I-V Curve Diagnosis
- Integrated AFCI (DC arc-fault circuit protection)
- IP66 Rated and C5 Anti-Corrosion Level
- Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
- DC reverse-polarity protection
- Supports PLC/GPRS/WiFi communication with less wiring and reduced installation costs
- 5-year standard warranty
Register on SolisCloud, to support remote upgrade and control.
NRS-097-2-1 Certified
German and Dutch Installation Manuals still pending from the manufacturer. UK: Please note that a slight adjustment was required on the G99 report which has resulted in S5-GC range temporarily losing their G99 approved status. The updated form has already been resubmitted to the ENA and is currently awaiting assessment.
Important
Please note that this inverter does not include a data logger, CT, meter or export power manager. The meter "SOL-METER-3PH-CT3" is needed for export power control of one inverter, for more than one inverter use the EPM3-5G-PLUS.The meter requires a data logging stick but EPM3-5G-PLUS has a built in data logger.These items are sold separately.- Supplier Part No:
- SOL-S5-GC50K-DC
- Weight:
- 54.5 kg
- Rated Power:
- 50,000 W
- Min PPT Voltage:
- 195 V
- Max PPT Voltage:
- 1,000 V
- DC Startup Voltage:
- 195 V
- DC Shutdown Voltage:
- 180 V
- Max Input Voltage:
- 1,100 V
- Max DC Power:
- 75,000 W
- Max AC Power (5 Minutes):
- 55,000 W
- Surge AC Power (1 Second):
- 55,000 W
- Max DC Current:
- 160 A
- Max DC Inputs:
- 10
- Has DC Fuses:
- 0
- Connector:
- MC4
- Included Connectors:
- 20
- Euro Efficiency:
- 98.3 %
- Transformer:
- None
- MPPT Quantity :
- 5
- Has Integrated DC Switch:
- Yes
- Warranty:
- 5 years
- Not required parts
- SOL-CT-100A-10M Current Transformer for Solis 4G, 5G and 6S range 100A 10m
- SOL-EPM1-5G Solis Export Power Manager 5 Gen - 1ph
- Optional other parts
- to consider
- SOL-DLB-W Solis 50kW S5 3 Phase 5x MPPT - DC
- SOL-DLS-W3 Solis 50kW S5 3 Phase 5x MPPT - DC
- One of the followingAC Isolator
- KG100-T204-GBA290 Solis 50kW S5 3 Phase 5x MPPT - DC Three Phase AC Switch Disconnector 100A
- One of the followingPower Management
- SOL-EPM3-5G-PLUS Solis 50kW S5 3 Phase 5x MPPT - DC Export Power Management for up to 80 3-Phase inverter deployments
- SOL-METER-3PH-CT3 Solis 50kW S5 3 Phase 5x MPPT - DC 3-Phase Meter for 1 inverter deployment instead of using EPM
- One of the followingWarranty Extension
- SOL-WAR-20Y-50-60K Solis 50kW S5 3 Phase 5x MPPT - DC
- SOL-WAR-10Y-50-60K Solis 50kW S5 3 Phase 5x MPPT - DC
- One of the followingWeb Interface
- SOL-S2-WL-ST Solis 50kW S5 3 Phase 5x MPPT - DC Solis Data Logging Stick - WiFi &LAN
- Possible Alternatives
- SOL-S5-GC60K-DC Solis 60kW S5 3 Phase 6x MPPT - DC
- SOL-S5-GC40K-DC Solis 40kW S5 3 Phase Quad MPPT - DC
