Solis  |  SKU: SOL-S5-GC60K-DC

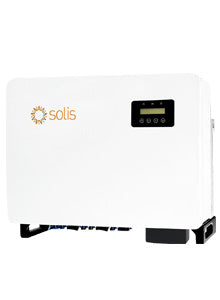

Solis 60kW S5 3 Phase 6x MPPT - DC

£2,804.71 £2,857.98
Tax included Shipping calculated at checkout.

Delivery and Shipping

Next Business Day Delivery On Order placed Before 12:00 PM

Except Ireland, highlands and Islands.

Returns and Refunds
  • We have a 14-day return policy, which means you have 14 days after receiving your item to request a return.
  • We will process your refund typically within 3-5 working days of receipt and assessment of returned goods.

- See our Returns and Refund policy for more detail -

S5-GC60K - Series 5 Three Phase Grid-Tied Inverter

Product Features

  • Max. efficiency of 98.7%
  • Type-II over-voltage surge protection for both DC and AC
  • Wide voltage range - Ultra low start-up voltage of 195V and max PV input voltage of 1100V
  • Max PV DC Power of 90kW
  • 32A input per MPPT, 16A input for each PV string
  • Maximum output power of 66kW
  • 6 MPPT design with precise MPPT algorithm, with 2 DC inputs per MPPT effectively reducing string mismatch
  • Intelligent monitoring, Smart I-V Curve Diagnosis
  • Integrated AFCI (DC arc-fault circuit protection)
  • IP66 Rated and C5 Anti-Corrosion Level
  • Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
  • DC reverse-polarity protection
  • Supports PLC/GPRS/WiFi communication with less wiring and reduced installation costs
  • 5-year standard warranty

Register on SolisCloud, to support remote upgrade and control.

SA:

NRS-097-2-1 Certified

AC Protection Box - ACDB-125A-125A-1-1 - 125A 3PH, with Power Analyser

UK: G99 Certified.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Eco Trade Supplies will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Important

Please note that this inverter does not include a data logger, CT, meter or export power manager. The meter "SOL-METER-3PH-CT3" is needed for export power control of one inverter, for more than one inverter use the EPM3-5G-PLUS.The meter requires a data logging stick but EPM3-5G-PLUS has a built in data logger.These items are sold separately.

If you have any technical queries about this product or wish to report any issues with the information on this page then please use the Contact Form to contact us.
Supplier Part No:
SOL-S5-GC60K-DC
Weight:
54.5 kg
Rated Power:
60,000 W
Min PPT Voltage:
195 V
Max PPT Voltage:
1,000 V
DC Startup Voltage:
195 V
DC Shutdown Voltage:
180 V
Max Input Voltage:
1,100 V
Max DC Power:
90,000 W
Max AC Power (5 Minutes):
66,000 W
Surge AC Power (1 Second):
66,000 W
Max DC Current:
192 A
Max DC Inputs:
12
Has DC Fuses:
0
Connector:
MC4
Included Connectors:
24
Euro Efficiency:
98.4 %
Transformer:
None
MPPT Quantity :
6
Has Integrated DC Switch:
Yes
Warranty:
5 years
Use our quick configurator tool to identify possible panel and inverter configurations: Quick Config

Not required parts
SOL-CT-100A-10M Current Transformer for Solis 4G, 5G and 6S range 100A 10m
SOL-EPM1-5G Solis Export Power Manager 5 Gen - 1ph
Optional other parts
to consider
SOL-DLB-W Solis 60kW S5 3 Phase 6x MPPT - DC
SOL-DLS-W3 Solis 60kW S5 3 Phase 6x MPPT - DC
One of the followingPower Management
SOL-EPM3-5G-PLUS Solis 60kW S5 3 Phase 6x MPPT - DC Export Power Management for up to 80 3-Phase inverter deployments
SOL-METER-3PH-CT3 Solis 60kW S5 3 Phase 6x MPPT - DC 3-Phase Meter for 1 inverter deployment instead of using EPM
One of the followingWarranty Extension
SOL-WAR-20Y-50-60K Solis 60kW S5 3 Phase 6x MPPT - DC
One of the followingWarranty Extension
SOL-WAR-15Y-50-60K-S5 Solis 60kW S5 3 Phase 6x MPPT - DC
One of the followingWeb Interface
SOL-S2-WL-ST Solis 60kW S5 3 Phase 6x MPPT - DC Solis Data Logging Stick - WiFi &LAN
Possible Alternatives
SOL-S5-GC50K-DC Solis 50kW S5 3 Phase 5x MPPT - DC
