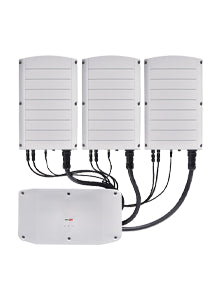

SolarEdge  |  SKU: SE-100000-BASE-FULL

100kW Synergy Manager BASE No DC Switch, MC4, DC SPD

£5,115.68 £5,950.70
Tax included Shipping calculated at checkout.
This part is made up of the following items:
3 x SE-SYNERGY-RSD Synergy Secondary Unit with RapidShutdownDevice
1 x SE-100000-MNGR-B 100kW Synergy Manager BASE No DC Switch, MC4, DC SPD

Three Phase Synergy Inverter

Main features:

  • Pre-commissioning feature for automated validation of system components and wiring during the site installation process and prior to grid connection.
  • Easy 2-person installation with lightweight, modular design (each inverter consists of 2 or 3 Synergy Units and one Synergy Manager).
  • Independent operation of each Synergy Unit enables higher uptime and easy serviceability.
  • Built-in thermal sensors detect faulty wiring ensuring enhanced protection and safety.
  • Built-in arc fault protection and optional rapid shutdown (depending on Synergy Manager used)
  • Built-in PID mitigation for maximized system performance.
  • Monitored and field-replaceable surge protection devices: integrated RS485 and Type 2 DC SPDs, optional Type 2 AC SPD.
Please note FULL parts consist of 1x Synergy Manager and 2x Synergy Units ( 3x for 90 and 100kW)
Some documents are currently missing. These will be added as soon as available.

If you have any technical queries about this product or wish to report any issues with the information on this page then please use the Contact Form to contact us.
Weight:
118 kg
Rated Power:
100,000 W
Min PPT Voltage:
0 V
Max PPT Voltage:
0 V
DC Startup Voltage:
0 V
DC Shutdown Voltage:
0 V
Max Input Voltage:
1,000 V
Max DC Power:
150,000 W
Max AC Power (5 Minutes):
100,000 W
Surge AC Power (1 Second):
100,000 W
Max DC Current:
144.75 A
Max DC Inputs:
9
Has DC Fuses:
12
Connector:
MC4
Included Connectors:
18
Euro Efficiency:
98 %
Transformer:
None
MPPT Quantity :
0
Has Integrated DC Switch:
Yes
Warranty:
12 years
Use our quick configurator tool to identify possible panel and inverter configurations: Quick Config

Optional other parts
One of the followingWarranty Extension
SE-WAR-20Y-MNGR-80-100K 100kW Synergy Manager BASE No DC Switch, MC4, DC SPD
Possible Alternatives
SE-90000-FUSE-FULL 90kW Synergy Manager FUSE DC Switch, MC4, DC SPD, Fuses
SE-100000-FUSE-FULL 100kW Synergy Manager FUSE DC Switch, MC4, DC SPD, Fuses
SE-100000-SWITCH-FULL 100kW Synergy Manager SWITCH DC Switch, MC4, DC SPD
SE-90000-BASE-FULL 90kW Synergy Manager BASE No DC Switch, MC4, DC SPD
