Solis  |  SKU: SOL-S5-GC25K-DC

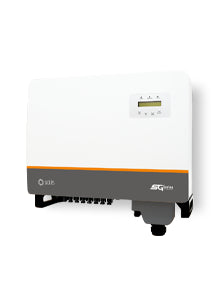

Solis 25kW S5 3 Phase Triple MPPT - DC

£1,732.36 £1,765.26
Tax included Shipping calculated at checkout.

Delivery and Shipping

Next Business Day Delivery On Order placed Before 12:00 PM

Except Ireland, highlands and Islands.

Returns and Refunds
  • We have a 14-day return policy, which means you have 14 days after receiving your item to request a return.
  • We will process your refund typically within 3-5 working days of receipt and assessment of returned goods.

- See our Returns and Refund policy for more detail -

S5-GC25K - Series 5 Three Phase Grid-Tied Inverter

Product Features:

  • Max. efficiency of 98.5%
  • Type-II over-voltage surge protection for both DC and AC
  • Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
  • 32A input per MPPT, 16A input for each PV string
  • Maximum AC output power of 27.5kW
  • 3 MPPT design with precise MPPT algorithm, with 2 DC inputs per MPPT effectively reducing string mismatch
  • Intelligent monitoring, Smart I-V Curve Diagnosis
  • Integrated AFCI (DC arc-fault circuit protection)
  • IP66 Rated
  • DC reverse-polarity protection
  • 5-year standard warranty, extendable to 10 or 20-years.

Register on SolisCloud, to support remote upgrade and control.

SA: NRS-097-2-1 Certified and CoCT Approved .

UK: G99 Certified.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Eco Trade Supplies will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Important

Please note that this inverter does not include a data logger, CT, meter or export power manager. The meter "SOL-METER-3PH-CT3" is needed for export power control of one inverter, for more than one inverter use the EPM3-5G-PLUS.The meter requires a data logging stick but EPM3-5G-PLUS has a built in data logger.These items are sold separately.

If you have any technical queries about this product or wish to report any issues with the information on this page then please use the Contact Form to contact us.
Supplier Part No:
SOL-S5-GC25K-DC
Weight:
37 kg
Rated Power:
25,000 W
Min PPT Voltage:
200 V
Max PPT Voltage:
1,000 V
DC Startup Voltage:
200 V
DC Shutdown Voltage:
180 V
Max Input Voltage:
1,100 V
Max DC Power:
37,500 W
Max AC Power (5 Minutes):
25,000 W
Surge AC Power (1 Second):
27,500 W
Max DC Current:
96 A
Max DC Inputs:
6
Has DC Fuses:
0
Connector:
MC4
Included Connectors:
12
Euro Efficiency:
98.1 %
Transformer:
None
MPPT Quantity :
3
Has Integrated DC Switch:
Yes
Warranty:
5 years
Use our quick configurator tool to identify possible panel and inverter configurations: Quick Config

Not required parts
SOL-CT-100A-10M Current Transformer for Solis 4G, 5G and 6S range 100A 10m
SOL-EPM1-5G Solis Export Power Manager 5 Gen - 1ph
Optional other parts
to consider
SOL-DLB-W Solis 25kW S5 3 Phase Triple MPPT - DC
SOL-DLS-W3 Solis 25kW S5 3 Phase Triple MPPT - DC
SOL-EPM3-5G-PLUS Solis 25kW S5 3 Phase Triple MPPT - DC
SOL-METER-3PH-CT3 Solis 25kW S5 3 Phase Triple MPPT - DC
One of the followingWarranty Extension
SOL-WAR-10Y-25-40K-S5 Solis 25kW S5 3 Phase Triple MPPT - DC
SOL-WAR-20Y-25-40K-S5 Solis 25kW S5 3 Phase Triple MPPT - DC
One of the followingWeb Interface
SOL-S2-WL-ST Solis 25kW S5 3 Phase Triple MPPT - DC Solis Data Logging Stick - WiFi &LAN
Possible Alternatives
SOL-S5-GC36K-DC Solis 36kW S5 3 Phase Quad MPPT - DC
SOL-S5-GC30K-DC Solis 30kW S5 3 Phase Triple MPPT - DC
