GivEnergy  |  SKU: GIV-HY-3.6-G3

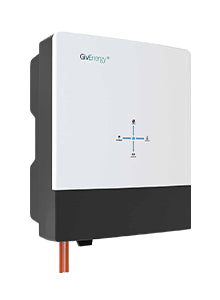

GivEnergy 1PH Hybrid Inverter 3.6kW 3rd Generation

£1,183.70 £1,291.16
Tax included Shipping calculated at checkout.

GivEnergy Hybrid Inverter 3.6kW Gen 3

The third generation of the GivEnergy Hybrid Inverter range

PLEASE NOTE: AN EARTH BONDING KIT IS REQUIRED WITH EVERY GEN 3 INVERTER. THIS IS NOT INCLUDED AND MUST BE ADDED SEPARATELY: sku code - GIV-PE-KIT-G3

It can be coupled directly with solar panels to generate usable electricity in the property as well as store any excess energy for later use in a battery. The Hybrid Inverter aims to minimise export by storing excess energy in the battery during generation hours.

 Additionally, it will minimise import by discharging to meet demand in the property

Spec

  • MPPT Range 120V - 550V
  • Max. Short Circuit Current (per string) 20A
  • Max. Input Current (per string) 15A
  • MPPT Tracker / No. of Strings per MPPT Tracker 2/1

Features

  • In-built WiFi and LAN
  • Higher Charge/Discharge Rate
  • Flexible Rate Tarif
  • 12 Year Warranty

Please note:

  • Givenergy online portal login is required to fully commission this system. If fitted by non-trained installer the Warranty will be VOID!
  • Givenergy system must be connected to the internet to benefit from full warranty services


If you have any technical queries about this product or wish to report any issues with the information on this page then please use the Contact Form to contact us.
Supplier Part No:
GIV-HY3.6 G3
Weight:
32 kg
Rated Power:
3,600 W
Min PPT Voltage:
120 V
Max PPT Voltage:
580 V
DC Startup Voltage:
150 V
DC Shutdown Voltage:
150 V
Max Input Voltage:
580 V
Max DC Power:
15,000 W
Max AC Power (5 Minutes):
3,600 W
Surge AC Power (1 Second):
3,600 W
Max DC Current:
30 A
Max DC Inputs:
2
Has DC Fuses:
0
Connector:
MC4
Included Connectors:
0
Euro Efficiency:
97 %
Transformer:
None
MPPT Quantity :
2
Has Integrated DC Switch:
No


Other Parts
One of the following Bond Kit
GIV-PE-KIT-G3 GivEnergy PE Bonding Kit for Gen3 Hybrid Inverters
Not required parts
GIV-WIFI-DONGLE GivEnergy WiFi Dongle
Optional other parts to consider
GIV-GM120CT GivEnergy 1PH Hybrid Inverter 3.6kW 3rd Generation
GIV-GM120CT-P GivEnergy 1PH Hybrid Inverter 3.6kW 3rd Generation
GIV-PVPRO GivEnergy 1PH Hybrid Inverter 3.6kW 3rd Generation
Possible Alternatives
GIV-HY-5.0-G3 GivEnergy 1PH Hybrid Inverter 5.0kW 3rd Generation
