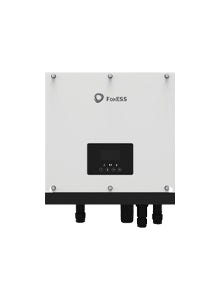

Fox H1 3.0kW Hybrid Inverter
Fox H1 3.0kW Hybrid Inverter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Fox system is easy to install and will save you time spent on installation. Remote monitoring is also avalible via your smartphone or web portal.
- Compatible with: ECS2900 ( 1 Master + 1 Slave Minimum, up to 6 Slaves Maximum)
- Compatible with: ECS4100 ( 1 Master + 1 Slave Minimum, up to 6 Slaves Maximum)
- Compatible with: ECS4300 ( 1 Master + 1 Slave Minimum, up to 6 Slaves Maximum)
- Compatible with: ECS4800 ( 1 Master + 1 Slave Minimum, up to 6 Slaves Maximum)
- Compatible with: HV2600 ( 1 BMS + 2 HV2600 Minmum, up to 7 Maximum)
- IP65 rated - suitable for outdoor installations
- Remote monitoring via web portal or smartphone
- Easy to expand battery capacity
- Dual MPPT - ensure optimal solar production
- High round-trip efficiency of 97%
CT Clamps and WiFi stick are included in the box. A second CT will be required if there's another generator set (i.e PV, wind or other).
A meter will be required for >30m distance between inverter and incoming power connection point.
Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard. Please check the warranty document for more information.
Please Note: When installing batteries side-by-side and not stacked one on top of the other, we recommend using FE-HV2600-EXT-1M
- Supplier Part No:
- H1-3.0 (with EPS)
- Weight:
- 26.7 kg
- Rated Power:
- 3,000 W
- Min PPT Voltage:
- 80 V
- Max PPT Voltage:
- 550 V
- DC Startup Voltage:
- 75 V
- DC Shutdown Voltage:
- 75 V
- Max Input Voltage:
- 600 V
- Max DC Power:
- 3,900 W
- Max AC Power (5 Minutes):
- 3,300 W
- Surge AC Power (1 Second):
- 3,301 W
- Max DC Current:
- 27 A
- Max DC Inputs:
- 2
- Has DC Fuses:
- 0
- Connector:
- MC4
- Included Connectors:
- 4
- Euro Efficiency:
- 97 %
- Transformer:
- None
- MPPT Quantity :
- 2
- Has Integrated DC Switch:
- Yes
- Warranty:
- 5 years
- Optional other parts
- to consider
- FE-GSM-STICK Fox H1 3.0kW Hybrid Inverter
- One of the followingEnergy Meter
- FE-AIO-EM Fox H1 3.0kW Hybrid Inverter
