430W N-type Bifacial Double Glass Traceable All Black with MC4 Conn...

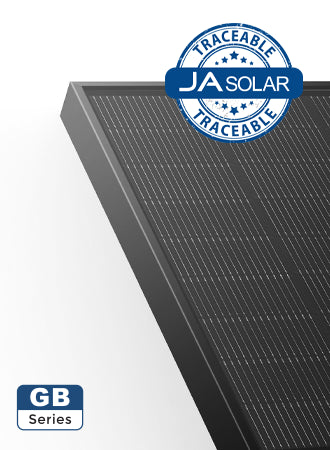

JA Solar: 430W N-type Bifacial Double Glass with MC4 Connectors
JAM54D-41-430-GB-MC4
Powered by the latest MBB n-type solar cell and half-cell configuration, these modules have higher output power, lower LID, better weak illumination response and better temperature coefficient.
Features:
- Higher power generation better LCOE
- Better weak illumiation response
- -type with very lower LID
- Better Temperature Coefficient
Warranty:
- 12-year product warranty
- 30-year linear power output warranty
- Supplier Part No:
- JAM54D-41-430-GB-TS-AB-MC4
- Weight:
- 21.5 kg
- Rated Power:
- 430 W
- MCS Reference:
- BABT 8515-324
- Length:
- 1,722 mm
- Width:
- 1,134 mm
- Depth:
- 30 mm
- VMPP:
- 32.88 V
- IMPP:
- 13.08 A
- Isc:
- 13.75 A
- Voc:
- 38.84 V
- Temp. Coefficient (Mpp):
- -0.29 %
- Clamp position on panel:
- Long and short side
- Connector Type:
- EVO2
- Efficiency:
- 22.0 %
- Pallet Size:
- Oversized
- Compatible Micro-Inverters
- EN-IQ7PLUS-72-M-INT Enphase IQ7 Plus 60 and 72 cell MC4 integrated Microinverter 230 &400VAC.
- EN-IQ8AC-72-M-INT Enphase IQ8AC 54 to 72 cell Microinverter 366 VA peak power MC4
- EN-IQ8AC-72-M-INT-3PH Enphase IQ8AC 54 to 72 cell Microinverter 366 VA peak power MC4
- EN-IQ8HC-72-M-INT Enphase IQ8HC 54 and 72 cell Microinverter 384 VA peak power MC4
- Possible Alternatives
- JAM54D-41-430-LB-AB-MC4 430W N-type Bifacial Double Glass LB All Black with MC4 Connectors
- Compatible Optimisers
- P850-2.2-LI-1.3-MC4 P850 Optimiser 850W MC4 2x High Power/Bi-facial 2.2m with 1.3m input length
- P850-2.2-MC4 P850 Optimiser 850W MC4 2x High Power/Bi-facial 2.2m
- P950-2.2-1.3-MC4 P950 Optimizer 950W MC4 2 x high power or bi-facial modules with 1.3m input length
- P950-2.2-MC4 P950 Optimizer 950W MC4 2 x high power or bi-facial modules
- S1000-LI-MC4 S1000 Power Optimizer Long Input (1.3m)
- S1000-MC4 S1000 Power Optimizer
- S1200-LI-MC4 SolarEdge S1200 Commercial Power Optimizer
- S1200-MC4 S1200 Power Optimizer
- S1400-MC4 S1400 Power Optimizer
- S440-MC4 Solar Edge S440 Power Optimizer
- S500-MC4 Solar Edge S500 Power Optimizer
- P505-MC4 SolarEdge P505 Optimiser MC4 High Current for Bi-Facial
- TS4-A-O Tigo TS4 PV Module Advanced Add-On/Retrofit
- P750-MC4 SolarEdge P750 Optimiser MC4 High Current for Bi-Facial
- SUN2000-450W-P2 Huawei SUN2000 450W Smart PV Optimizer
- SUN2000-600W-P Huawei SUN2000 600W Smart PV Optimizer
