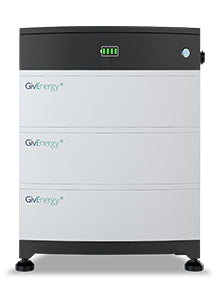

10.2kWh HV Li-Ion Battery Stack - Including BMU Cable and Base
10.2kWh HV Li-Ion Battery Stack - Including BMU Cable and Base is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
| 3 x GIV-BAT-3.4-HV | GivEnergy 3.4kWh High Voltage Li-Ion Battery | |
| 1 x GIV-BAT-HV-BMU | High Voltage Battery BMU Top and Bottom Section of Battery Housing | |
Supplier Code: GIV-BAT-10.2-HV
Battery Type: Lithium iron phosphate (LFP)
Capacity: 10.2 kWh
Nominal Voltage: 230 V DC
Operating Voltage Range: 200-600 V
Warranty: 12 years
Technical Specification
Max Charge/Discharge Current: 25/25 A
Depth of Discharge (DoD): 100 %
Life cycles: Unlimited within the 12 year warranty
C Rating: 0.5C
Required Accessories: No other accessories needed besides the BMS
Communication: CAN BUS
Compatibility: Inverter connection for 3PH Hybrid (GIV Hybrid Inverter only)
- Weight:
- 121.55 kg
- Rated Power:
- 10,200 W
- Battery Type:
- Lithium Ion
- Nominal Energy:
- 10200 Wh
- Depth of discharge:
- 100.00 %
- Voltage:
- 230 V
- Continuous Discharge Rate (Normal Use):
- 6550 W
- Maximum Discharge Rate (5 Minutes):
- 6550 W
- Surge Discharge Rate (15 Seconds):
- 6550 W
- Maximum Charge Rate (5 Minutes):
- 6550 W
